Amplitude Modulation–Demodulation System
Real-time AM signal chain with custom op-amp active filters, modeled in LT-SPICE then built
Designed and analyzed a complete Amplitude Modulation (AM) and demodulation signal chain. The architecture was modeled and verified in LT-SPICE to validate theoretical performance and signal integrity. Key signal-conditioning stages were transitioned to physical hardware — specifically custom 3rd-order active filters engineered from op-amps and built on a breadboard — to demonstrate practical implementation and noise rejection.
Modeled and simulated full AM modulation/demodulation pathways in LT-SPICE
Designed and constructed 3rd-order active filters using discrete op-amps
Validated physical circuit performance against theoretical SPICE models

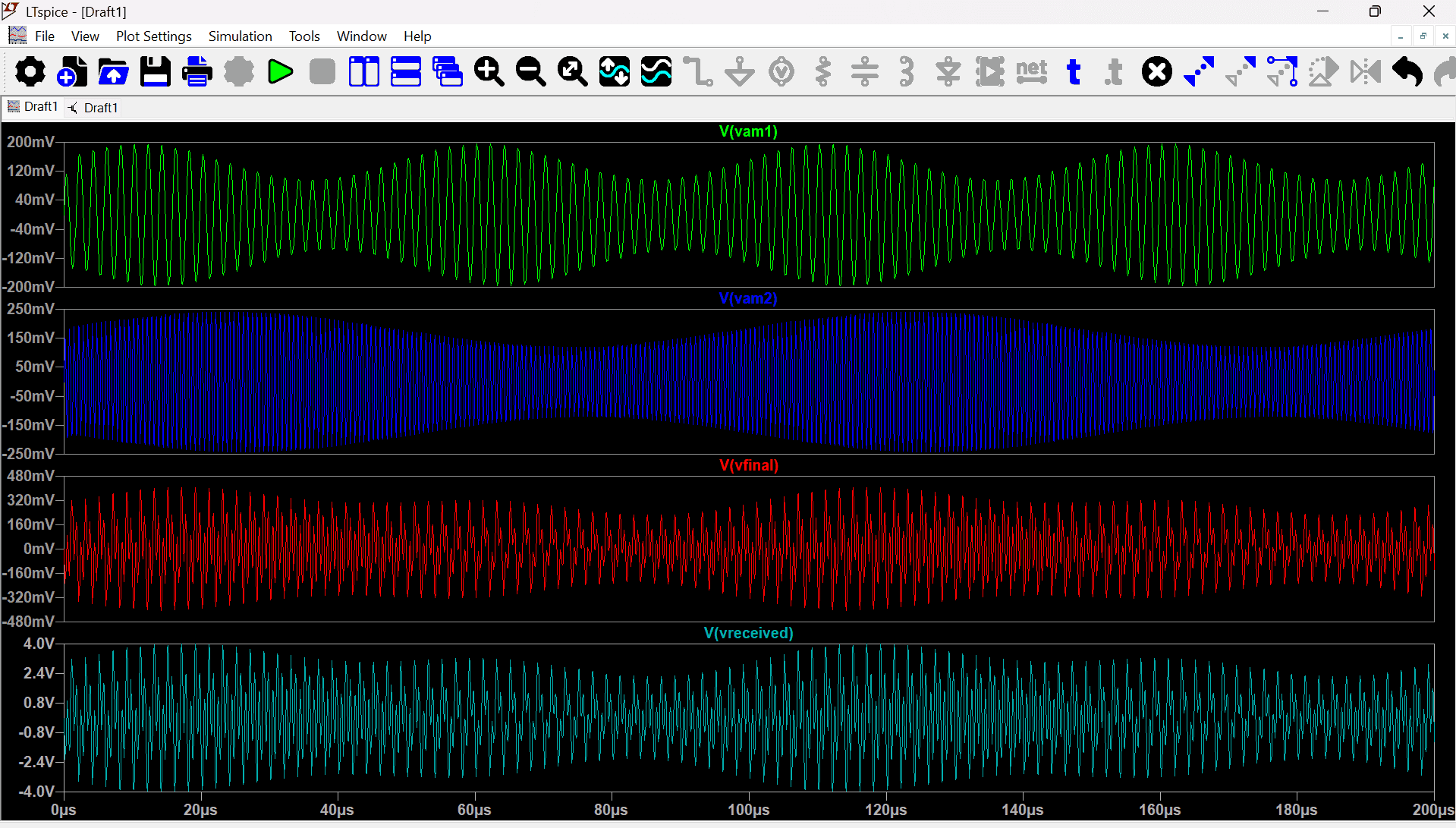

The modulated signal
The AM waveform. I designed and analyzed a full amplitude-modulation and demodulation chain end to end, from carrier to recovered message.
Simulate first
The LT-SPICE model. I validated the whole signal path in simulation first — checking theoretical performance and signal integrity before touching a breadboard.
Demodulated output
Recovered output. The key analog stages — custom 3rd-order active filters built from op-amps — are what reject noise and pull the original signal back out.
Real audio through the chain
Recovering real audio through the chain was the satisfying part: theory, SPICE, and a breadboard all finally agreeing with each other.
On the bench
Measuring the physical circuit against the SPICE model on the oscilloscope to confirm the hardware matched the math.
